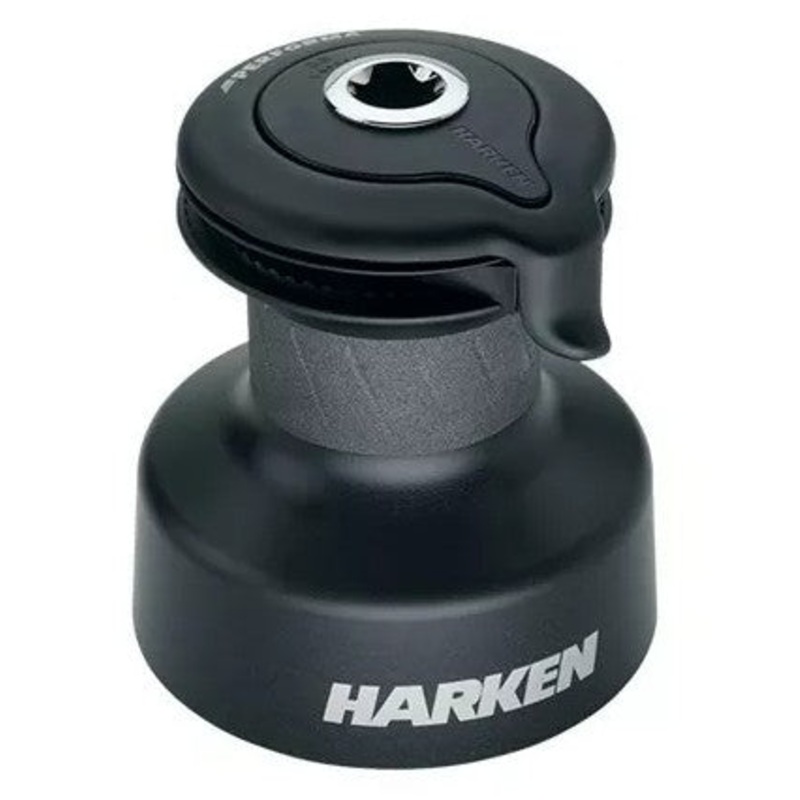

Harken 30 Self-Tailing Performa Winch 2 Speed

Description

Harken 30 Self-Tailing Performa Winch 2 Speed

Maximum line (mm) 10 mm

Speed 2

Power ratio – 1 7.8

Power ratio – 2 29.8

All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications
Maximum line (mm) 10 mm
Number of fasteners 5
Fasteners (mm) M6 SH mm
Fasteners (in) 1/4 SH in
Fastener circle (mm) 100 mm
Fastener circle (in) 4 in
Minimum line (mm) 6 mm
Speed 2
Drum (mm) 73 mm
Drum (in) 2 7/8 in
Base (mm) 120 mm
Base (in) 4 3/4 in
Line entry height (mm) 59 mm
Line entry height (in) 2 3/10 in
Gear ratio – 1 1.1
Gear ratio – 2 4.25
Power ratio – 1 7.8
Power ratio – 2 29.8
